Elite 3

Technical specifications.

• Full colour LCD touch-screen with high contrast ratio

• Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)

• User-friendly multilingual operating menu

• Sample rotor, ensuring safe and easy sampling

• Small-sized, low-maintenance needed.

• Electrical impedance method

• Photometry – LED-based technology.

• High voltage pulses on the aperture

• Chemical cleaning of the aperture using Erba Cleaner reagent

• Back-flush using high-pressure

• Data capacity: 10 000 results with all histograms

• Data back-up method: USB mass storage device

• Software upgrade method: Via USB port (using USB mass storage)

• Built-in printer: Thermal printer module with 3 flexible options

• Print full report with histograms

• Only Print basic 8 parameters

• Print from memory

• Full colour LCD touch-screen with high contrast ratio

• Status LED

• Dimensions (W x D x H): 320 mm x 260 mm x 365 mm

• Net Weight: 12 kg

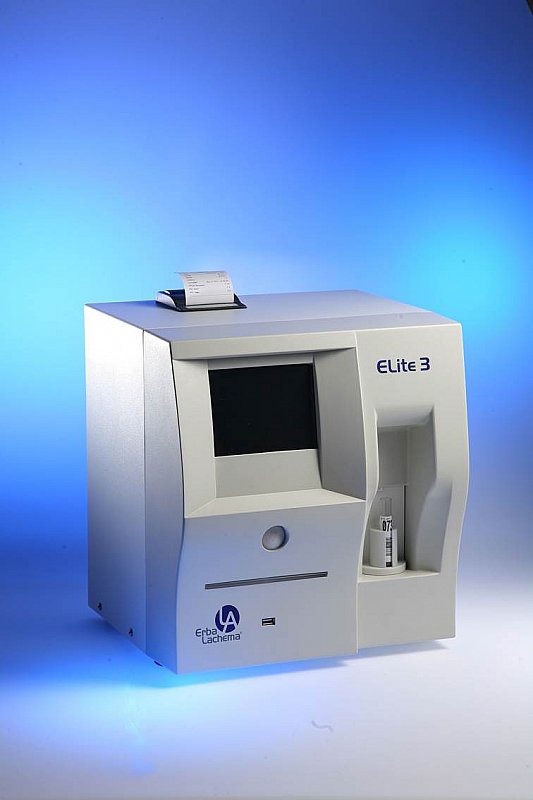

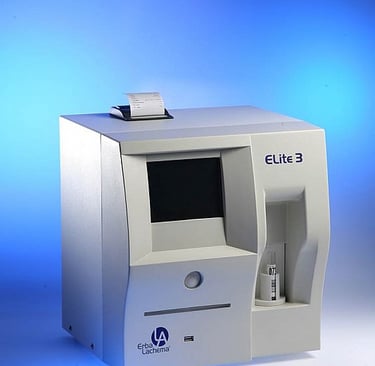

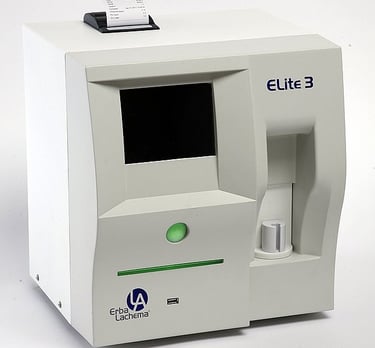

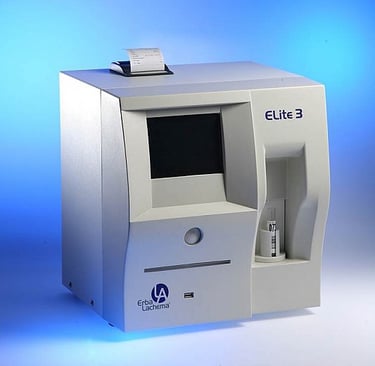

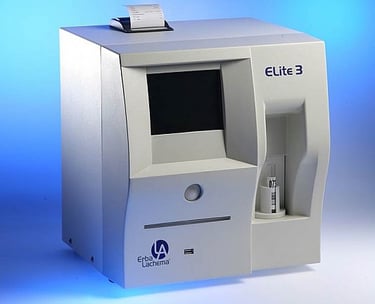

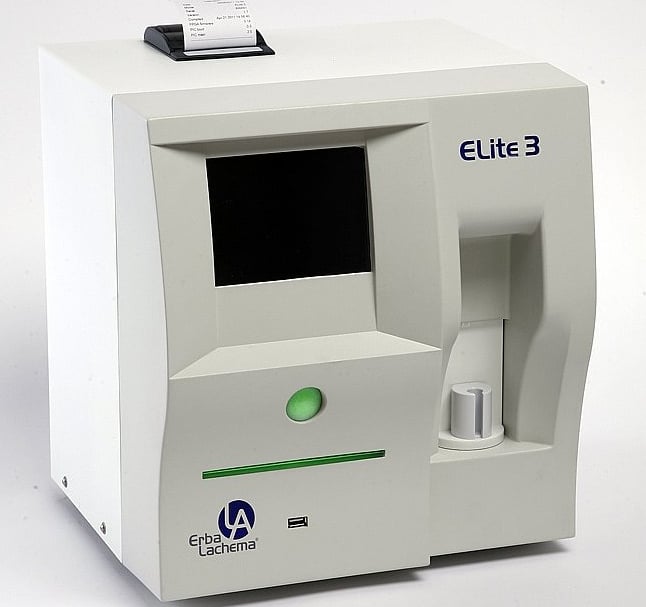

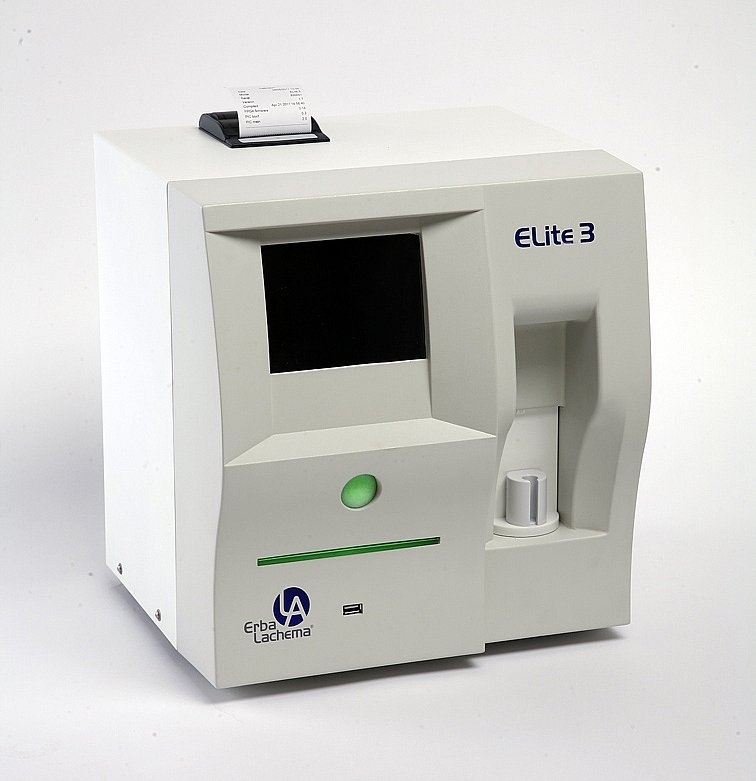

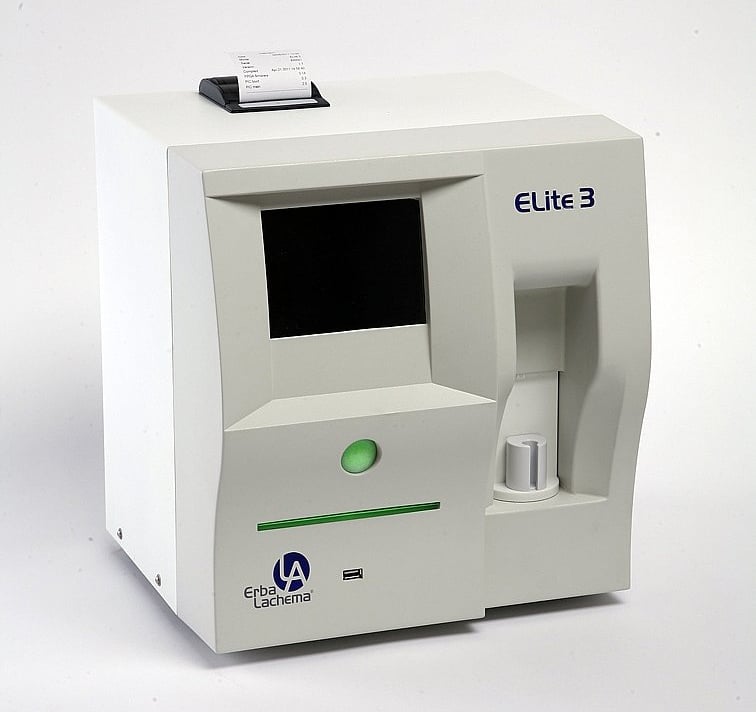

Elite 3

Advanced 3 Part Differential Hematology Analyzer

BENEFITS

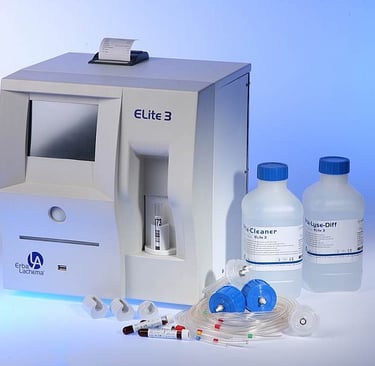

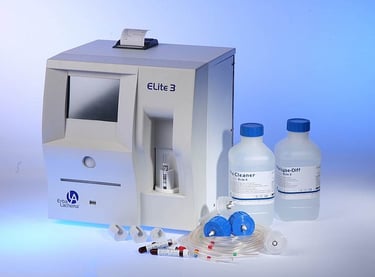

• Only 3 reagents needed (Erba Diluent-Diff, Erba Lyse-Diff, Erba Cleaner), environment-friendly (cyanide-free)

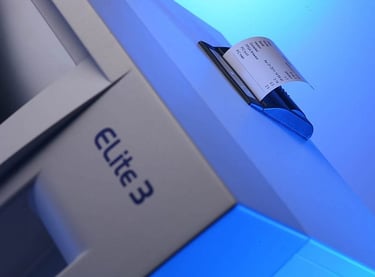

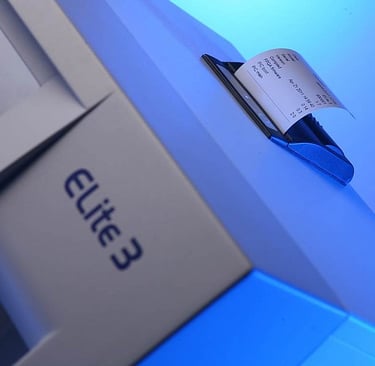

• Built-in printer with 58 mm wide roll paper, full report with histograms

• USB interface for support: Host computer, Keyboard, External printers, Upgrade control SW, Data back-up, Hand-held barcode reader

• Usage of standard electronic and mechanical components

• Aperture made in technical ruby
