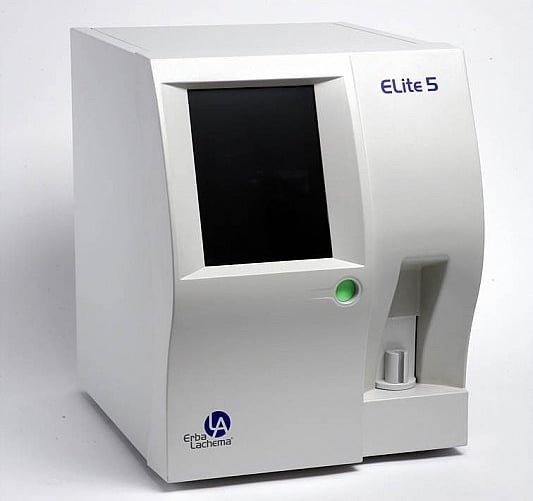

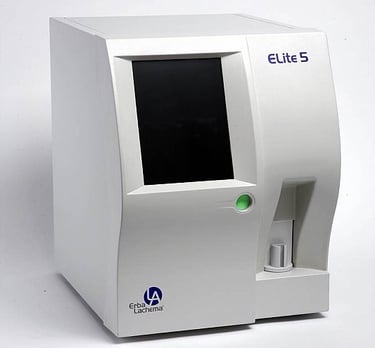

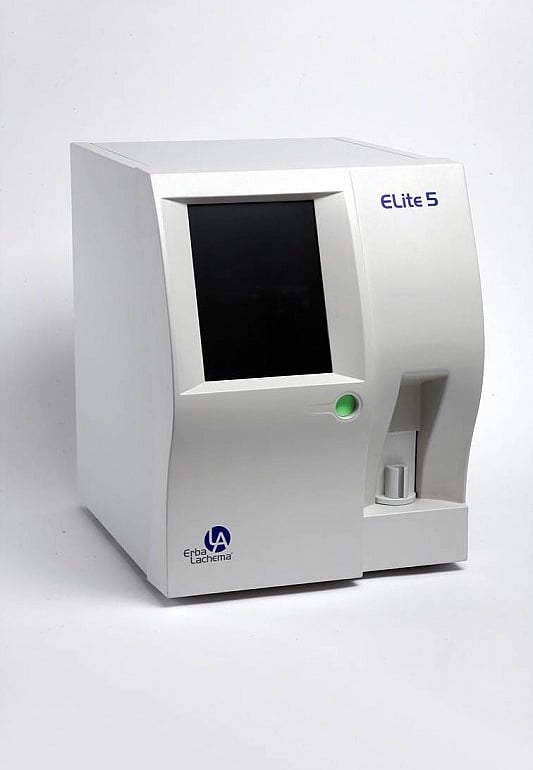

Elite 5

Technical specifications.

• Full colour LCD touch-screen with high contrast ratio

• Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)

• User-friendly multilingual operating menu

• Sample rotor, ensuring safe and easy sampling

• Low-maintenance needed

• Electrical impedance method with advanced SRV technology

• Diode-based LASER Technology with hydrodynamic focusing for a 5-part differential

• Photometry – LED-based technology for measurement of haemoglobin

• 26 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 2 scatter-grams – WBC 5 part differential & WBC/Baso + 2 histograms – RBC & PLT

• Throughput: 60 tests/hour

• Sample volume: 110 µl of whole blood in open & closed mode, 25 µl in small sample mode (optional)

  Chambers: Dual chamber advanced system for higher accuracy & precision

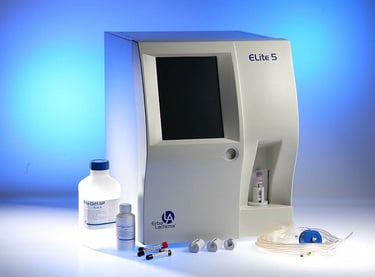

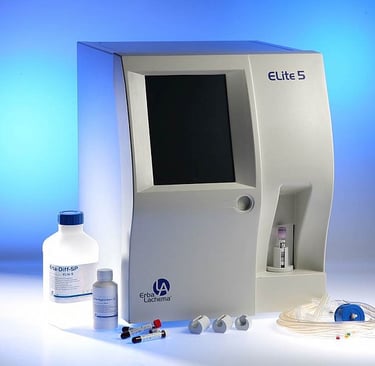

• Reagent System: 3 Reagent System – Environment-friendly reagents

Erba Dil-5P

Erba Lyse-5P

Erba Diff-5P

• High voltage pulses on the aperture

• Chemical cleaning of the aperture using Erba Hypoclean CC reagent

• Back-flush using high-pressure

• Choice of languages: English, French, German, Czech, Indonesian, Portuguese, Russian, Spanish

• Data capacity: 100,000 results with all scatter-grams & histograms

• Safety:

  • Sampling using an advanced sample holder

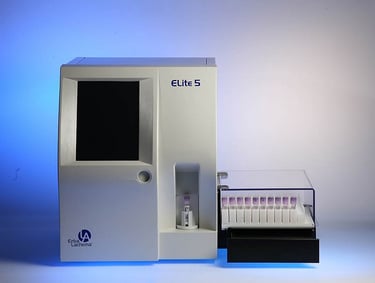

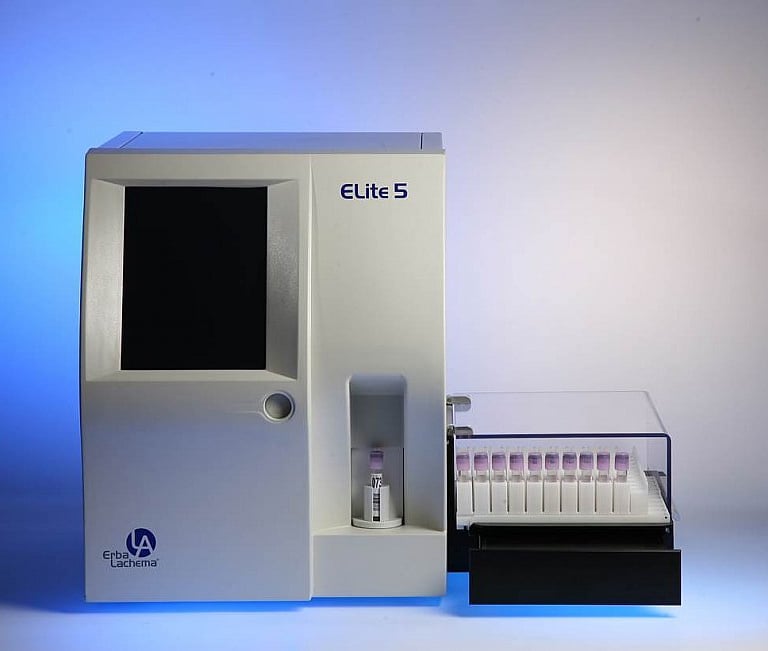

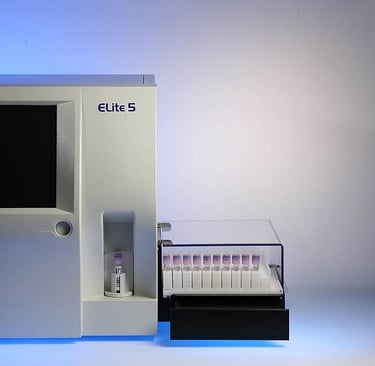

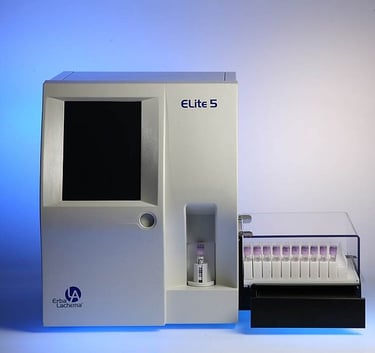

  • Optional auto sampler (up to 100 samples in 10 racks)

• Peripheral ports: USB interface (4) & PS/2

  • Support for the host computer

  • Support for USB or PS/2 keyboard (optional)

  • Support for external printers (HP DeskJet, LaserJet)

  • Support for a hand-held barcode reader (optional)

• Data back-up method: USB mass storage device

• Software upgrade method: Via USB port (using USB mass storage)
  User interface & Display:

  • Full colour LCD touch-screen with high contrast ratio

  • Status LED

• Dimensions (W x D x H): 410 mm x 465 mm x 515 mm
  Net weight: 35 kg

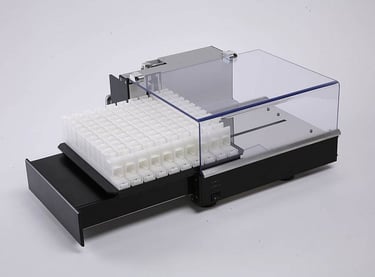

• Dimensions of autosampler (W x D x H): 190 mm x 380 mm x 322 mm
  Weight of autosampler: 10 kg

Elite 5

Advanced 5 Part Differential Hematology Analyzer

BENEFITS

• Only 3 on-line reagents needed (Erba Dil-5P, Erba Lyse-5P, Erba Diff-5P), enviroment-friendly (cyanide free)

• USB interface for support: Host computer, Keyboard, External printers, Upgrade control, Barcode reader (hand-held), SW, Data backup, Hand-held barcode reader

• Usage of standard electronic and mechanical components

• Aperture made in technical ruby

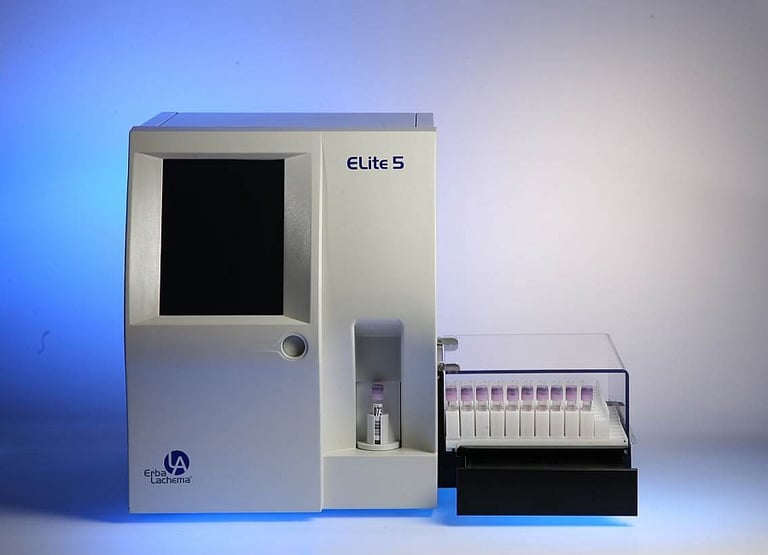

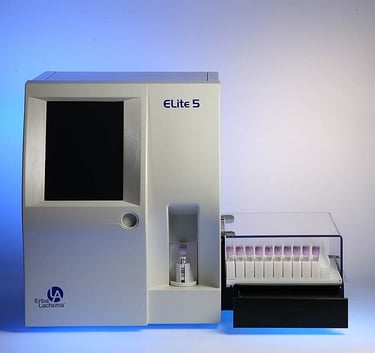

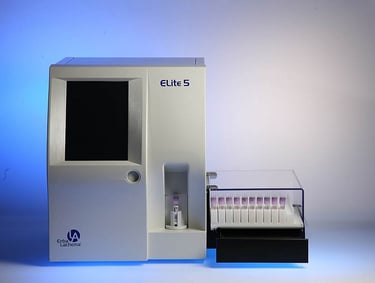

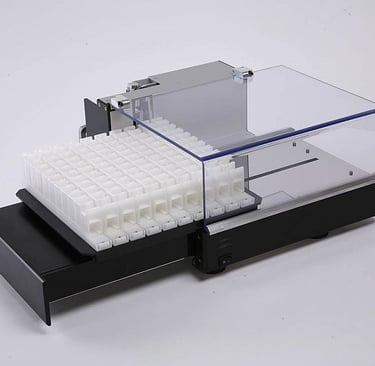

• Autosampler with built-in Barcode reader and mixer (up to 100 sample tubes in 10 racks), built-in cap detector to determine the presence of the sample tube cap
