Elite 580

Technical specifications.

• WBC, LYM, LYM%, MON, MON%, NEU, NEU%, EOS, EOS%, BAS, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, P-LCR, P-LCC;

• 4 research parameters: ALY, ALY%, LIC, LIC%

• 1x 3D scattergram, 3x 2D scattergram and 3 histograms

• Impedance method for WBC, RBC, PLT counting; independent Basophil channel

• Semiconductor-laser-based flow cytometry for white blood cells differential

• Colourimetric method for Haemoglobin using cyanide-free reagent

• 3 modes of calibration: manual, automatic using calibrator, automatic using fresh blood samples

• 3 levels of control blood (low, normal, high) for daily quality control measurement with Levey-Jennings charts

• User definable QC range H): 320 mm x 260 mm x 365 mm

• Net Weight: 12 kg

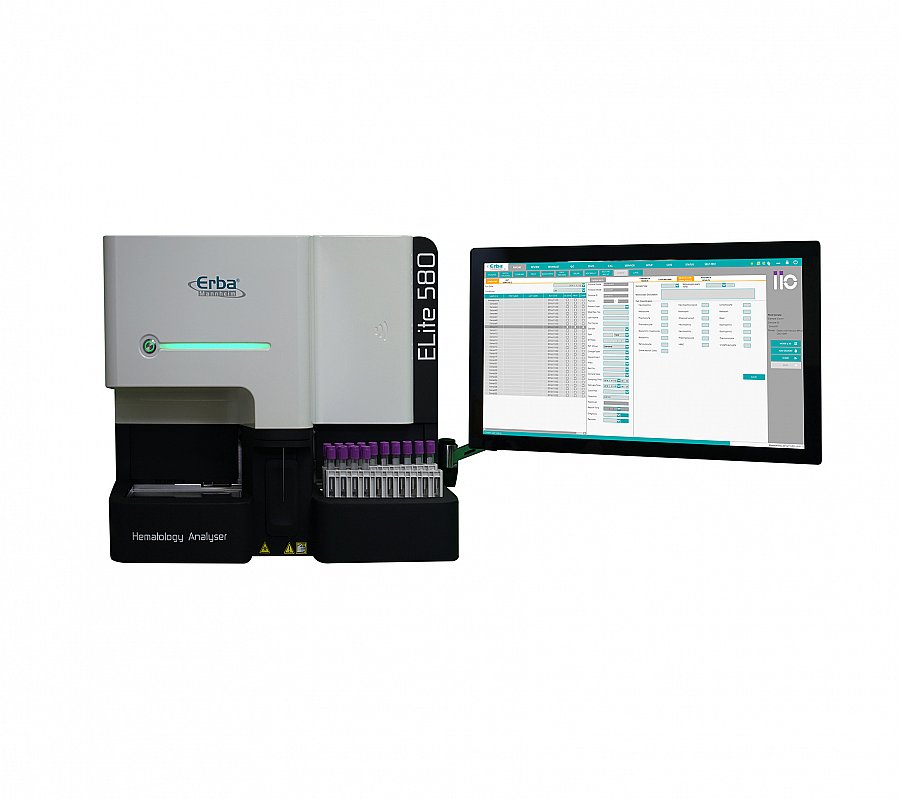

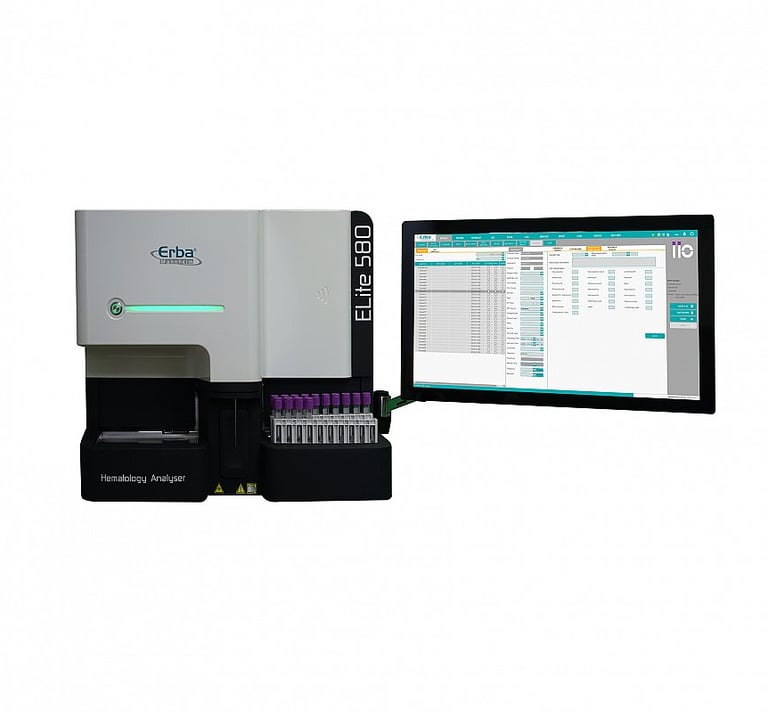

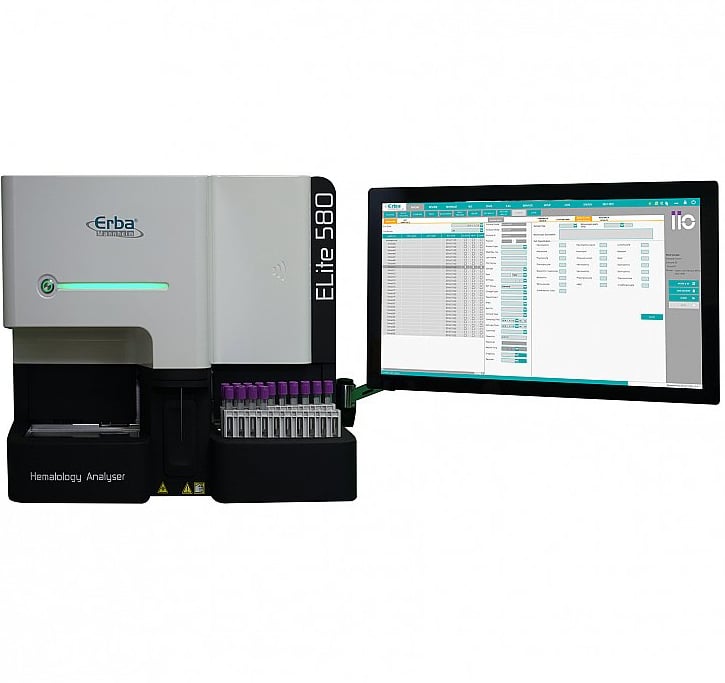

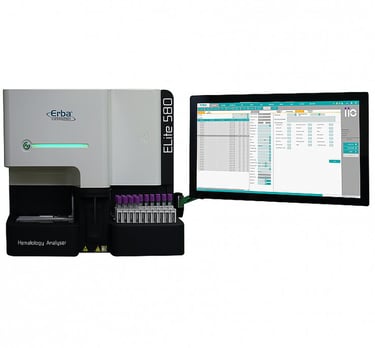

Elite 580

Advanced Hematology Analyzer of Erba Hematology Line

FEATURES

• Compact, powerful and affordable

• 29 parameters, 5-part differentiation

• Up to 80 samples per hour

• 20 µl sampling volume

• Whole blood, capillary blood and prediluted

• Rack closed tubes / manual opened tubes

• Reagent inventory management through RFID

• Large LCD display ~ 15“

• Connectable to LIS
