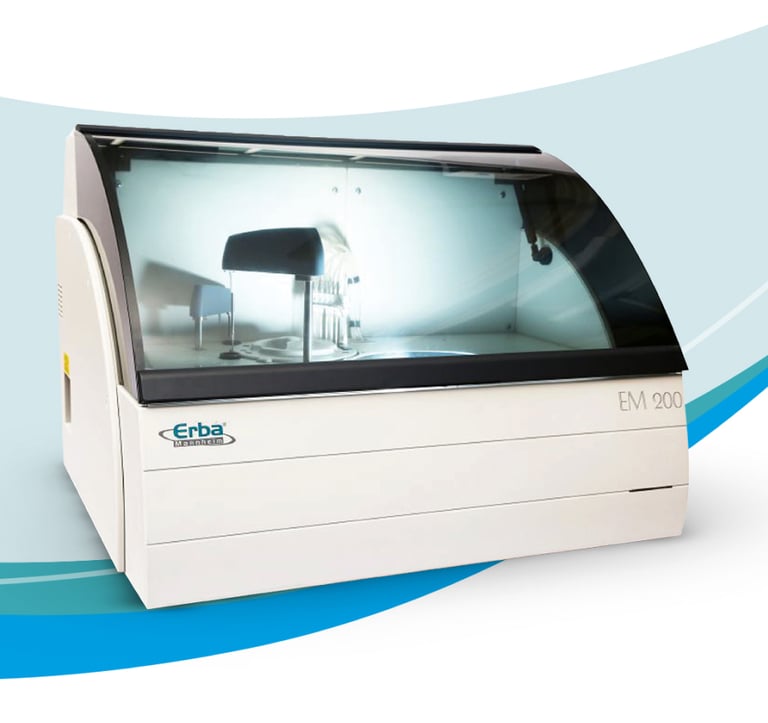

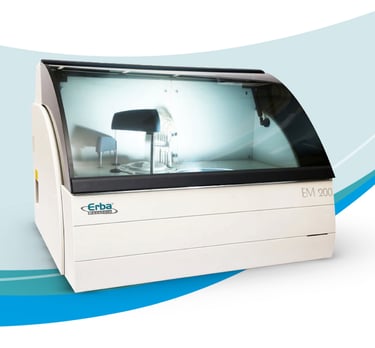

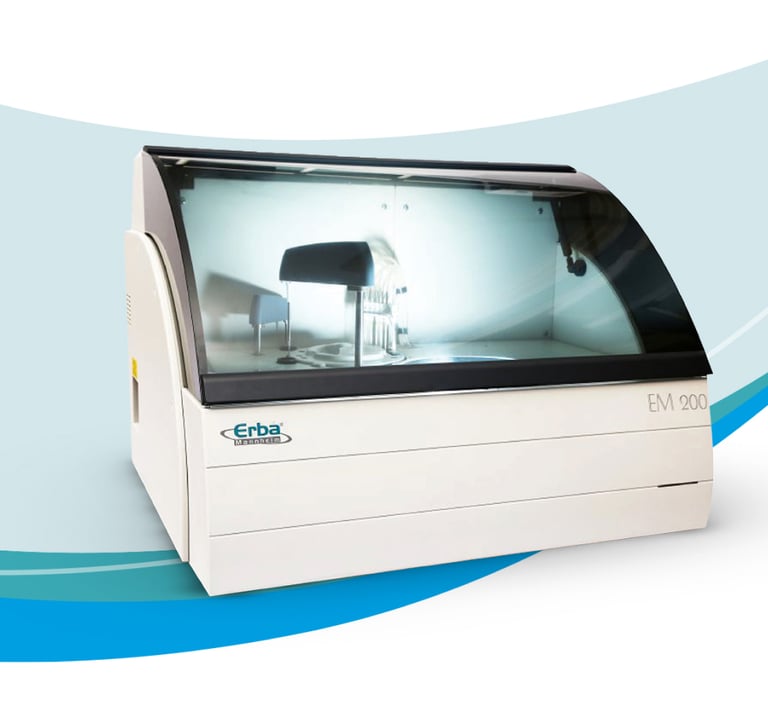

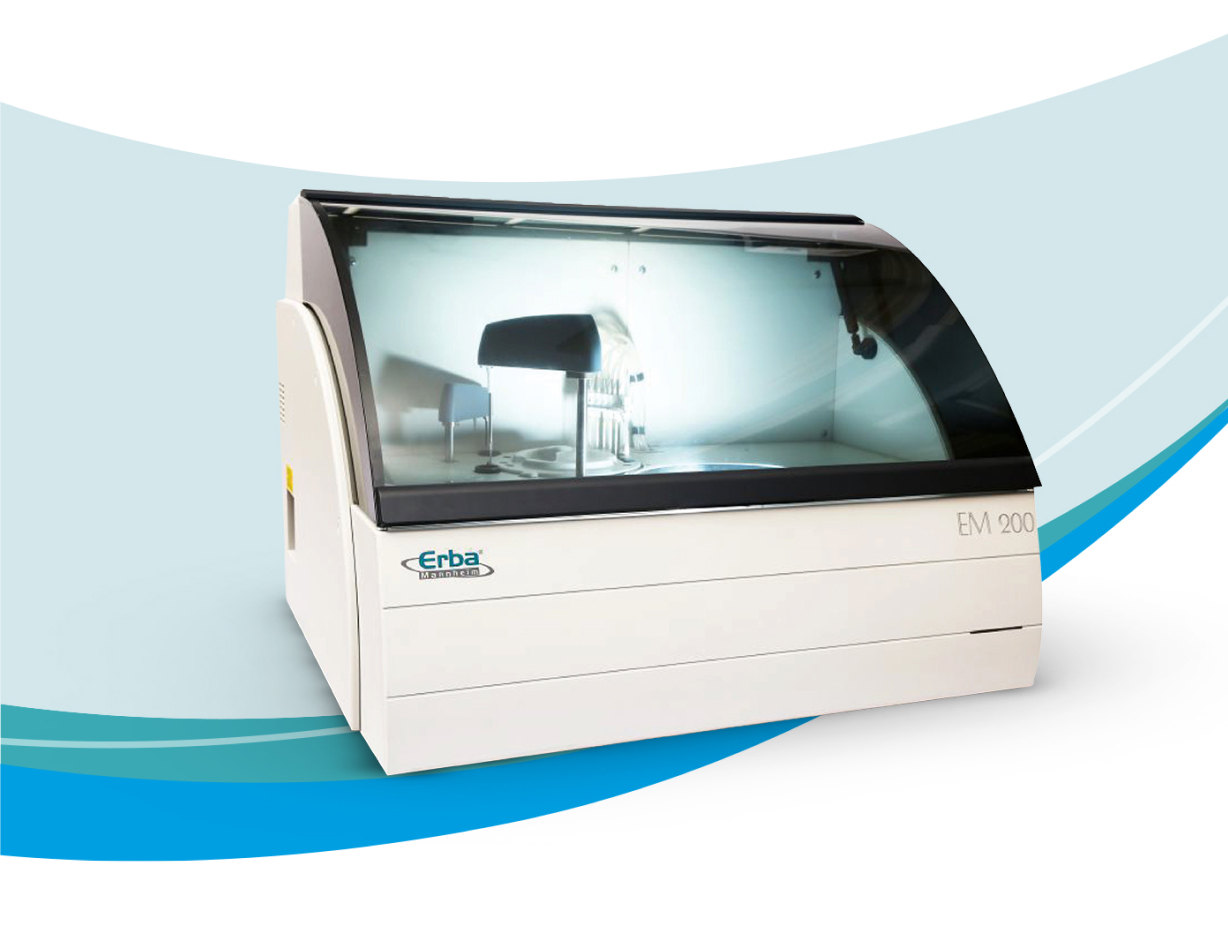

EM 200

EM 200 is a fully automated, random access and discrete clinical chemistry analyzer that enhances productivity and turnaround time. It has a throughput of 200 photometric tests per hour and 400 tests/hr. with ISE (Optional). EM 200 is fast and an accurate chemistry analyzer that has been designed for growing and mid-size laboratories. EM 200 can comfortably handle the demands of an increased workload in a convenient and cost efficient way. It adds value to the laboratory and is an ideal choice for Mid-size labs.

FEATURES

• Throughput: 200 tests / hour photometric and 400 tests / hour with ISE*
(*optional ISE with Na+, K+, Cl-, Li+)

• 45 permanent glass cuvettes

• Dedicated carousel for 39 sample positions and 50 reagent positions

• On board laundry system with 6 stages of washing and 2 stages of drying

• Auto Lamp life, saving feature

• Dedicated System packs

• Dustproof Static Photometer with 8

  standard wavelengths (340, 405, 505, 546,

  578, 600, 660, 700 nm) ensures precise

  reading every time.

TECHINCAL SPECIFICATIONS

• Reagent positions: 50 cooled reagent positions

• Sample type: Whole blood, Serum, Plasma, Urine, CSF other

• Sample volume: 2-70 µl (Adjustable in 0.1 µl)

• Light Source: Halogen lamp

• Programmable Parameters: Default system pack parameters + upto 10 user defined parameters

• Dimensions: 810 (W) x 800 (D) x 600 (H) mm

• Reading Volume: 180 µl

• Reagent Volume: 10-300 µl (Adjustable in 1 µl)

• Calibration Type: Linear, Non-Linear, MultiPoint
