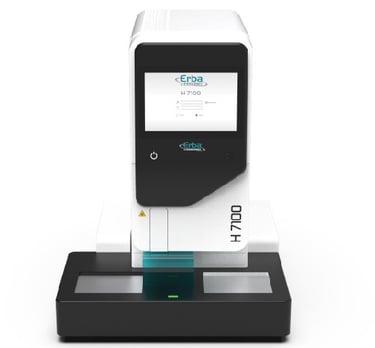

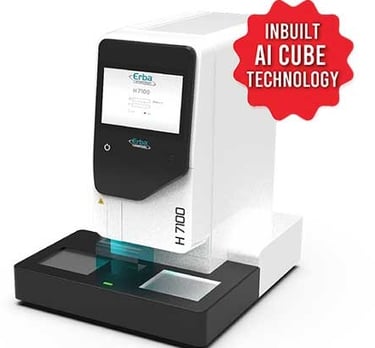

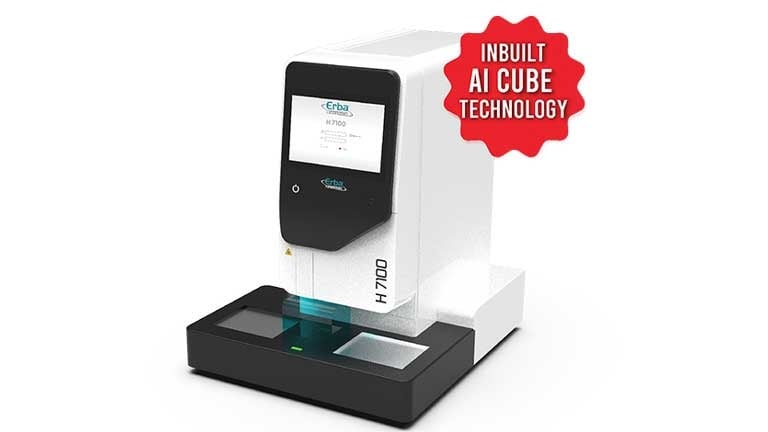

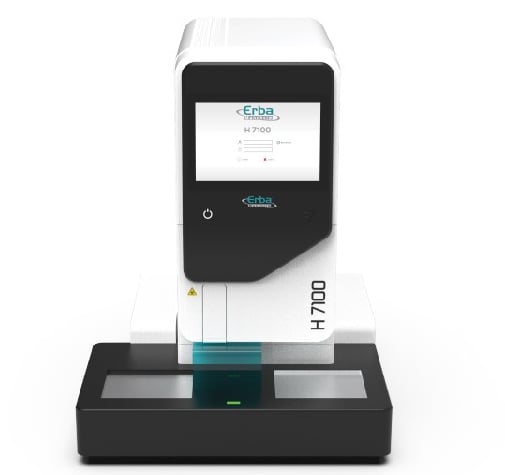

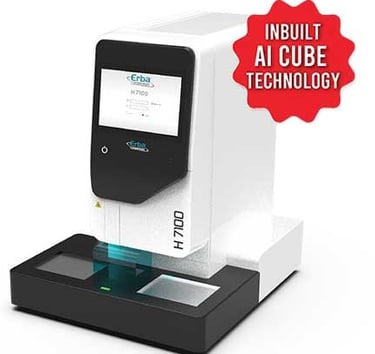

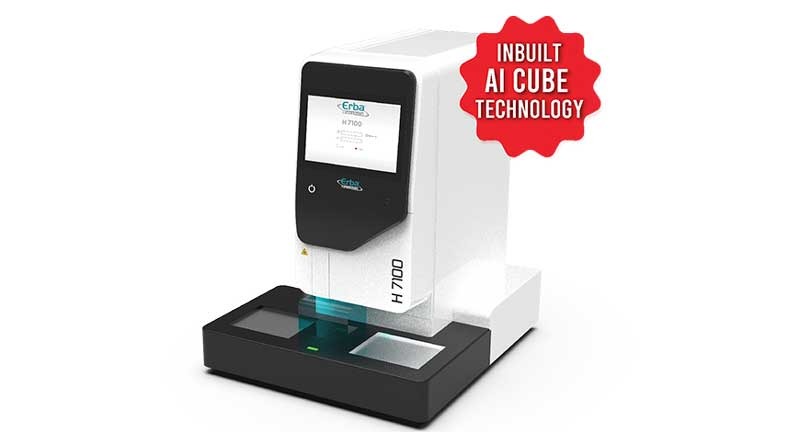

H 7100

Fully Automated 6-part differential Hematology Analyzer: Designed to redefine hematology analysis, this state-of-the-art diagnostic instrument promises a paradigm shift in blood analysis capabilities, catering to the intricate needs of clinical laboratories and research facilities.

FEATURES

• Fluoroscence flow cytometry technology for WBC , Differentials & Reticulocytes

• Inbuilt AI Cube Technology for AML & ALL cases.

• Dual measurement principles for WBC, RBC & Platelet

• Reports 71 parameters including retic panel & Immature platelet fraction

• Throughput upto 100 samples per hour

• Large storage capacity of 150000 samples

• Bidirectional Interfacing

• Large coloured LCD touch screen of 22 inch

• Product Application: CBC + Diff Analysis , CBC+DIFF+RET Analysis, CBC+RET Analysis

TECHINCAL SPECIFICATIONS

• Mode type: Whole Blood, Predilute, Capillary

• Autoloader: 60 Tubes; Continuous Loading with Auto-Mixing

• 70 Parameters: WBC, RBC, Hb, HCT, MCV MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW-CV, PDW-SD, P-LCR, P-LCC, Neutrophils % & #, Lymphocytes % & #, Monocytes % & #, Eosinophils % & #, Basophils % & # ,IG#,%, RET#,%, RHE, IRF, LFR, MFR, HFR, IPF%, IPF#, Mentzer index , RDWI, WBC-D, TNC-D, IME#,%,NLR, PLR-,LMR, d-NLR, HFC#,%*,NRBC#,%,*Micro#,%,*Macro#,%*,H-NR%,*L-NR%, PLT-I, RBC –O, PLT-O, WBC-O, MRV, RPI, H-IPF, FRC#,%,*CWBC, Hypo- He #,%, Hyper He #,%, *Research use only

• Principle of measurement:

  RBC/PLT/WBC : Electrical Impedance & Optical

  WBC DIFF: Fluoroscence Flowcytometry

  RET : Fluoroscence Flowcytometry

  Hb: Cyanide Free Colorimetry

  MCV: Measured

  HCT: Calculated

• Histograms: 3(RBC/WBC/PLT)

• Scattergrams: 8 (2D Scattergram), 2 (3D Scattergram)

• QR Code reader: For reading sample bar codes & direct input of QC values

• Sample volume:

  Whole Blood: 35 µL

  Pre-diluted: 20 µL

  Capillary: 20 µL

• Linearity Range:

  WBC : 0 - 500 ( x 103/µL)

  RBC : 0 – 8.6 ( x 103/µL)

  Hb: 0 - 26.0 (g/dL)

  HCT: 0 - 75 (%)

  PLT : 0 - 5000 (x 103/µL)

• Calibrator: Elite H cal

• Tri-level controls:

  Erba H7 CON L, N, H

  Erba H7 Ret CON L, N, H

  Open Vial Stability at 2 - 8˚C: 14 Days

• Throughput: Upto 100 tests/Hr

• Quality Control: 500 files with L-J Graph and X- Bar Analysis

• Data Storage: 1,50,000 results with graphs

• Dimension: 665x870x820

• Weight: 100 Kg

• Reagents: H 7100 Dil, H 7100 Dil ret, H 7100 Lyse 1, H 7100 Lyse 2, H 7100 Fluoro ret, H 7100 Fluoro diff, H Clean.

• Interface: 4 USB ports ( for connecting external devices including external printers) + 1 LAN Port (HL 7, TCP/IP; LIS connectivity)

• Operating Environment Temperature: 15-40˚C

• Humidity: 30-90%

• Power Requirement: A.C. 100 - 240 V with built-in voltage stabilizer 50/60Hz, 200 VA
